Run Stan's Pathfinder Variational Inference Algorithm

The $pathfinder() method of a CmdStanModel object runs Stan's Pathfinder algorithms. Pathfinder is a variational method for approximately sampling from differentiable log densities. Starting from a random initialization, Pathfinder locates normal approximations to the target density along a quasi-Newton optimization path in the unconstrained space, with local covariance estimated using the negative inverse Hessian estimates produced by the LBFGS optimizer. Pathfinder selects the normal approximation with the lowest estimated Kullback-Leibler (KL) divergence to the true posterior. Finally Pathfinder draws from that normal approximation and returns the draws transformed to the constrained scale. See the CmdStan User's Guide for more details.

Any argument left as NULL will default to the default value used by the installed version of CmdStan. See the CmdStan User's Guide for more details on the default arguments. These values are also available via the $cmdstan_defaults method.

Usage

pathfinder(
  data = NULL,
  seed = NULL,
  refresh = NULL,
  init = NULL,
  output_dir = getOption("cmdstanr_output_dir"),
  output_basename = NULL,
  sig_figs = NULL,
  threads = NULL,
  opencl_ids = NULL,
  num_threads = NULL,
  init_alpha = NULL,
  tol_obj = NULL,
  tol_rel_obj = NULL,
  tol_grad = NULL,
  tol_rel_grad = NULL,
  tol_param = NULL,
  history_size = NULL,
  single_path_draws = NULL,
  draws = NULL,
  num_paths = 4,
  max_lbfgs_iters = NULL,
  num_elbo_draws = NULL,
  save_single_paths = NULL,
  psis_resample = NULL,
  calculate_lp = NULL,
  show_messages = TRUE,
  show_exceptions = TRUE,
  save_cmdstan_config = getOption("cmdstanr_save_config", FALSE),
  compress = getOption("cmdstanr_compress", "none")
)

Arguments

data

(multiple options) The data to use for the variables specified in the data block of the Stan program. One of the following:

A named list of R objects with the names corresponding to variables declared in the data block of the Stan program. Internally this list is then written to JSON for CmdStan using write_stan_json(). See write_stan_json() for details on the conversions performed on R objects before they are passed to Stan.
A path to a data file compatible with CmdStan (JSON or R dump). See the appendices in the CmdStan guide for details on using these formats.
NULL or an empty list if the Stan program has no data block.

seed

(non-negative integer(s)) A seed for the (P)RNG to pass to CmdStan. In the case of multi-chain sampling the single seed will automatically be augmented by the run (chain) ID so that each chain uses a different seed. The exception is the transformed data block, which defaults to using same seed for all chains so that the same data is generated for all chains if RNG functions are used. The only time seed should be specified as a vector (one element per chain) is if RNG functions are used in transformed data and the goal is to generate different data for each chain.

refresh

(non-negative integer) The number of iterations between printed screen updates. If refresh = 0, only error messages will be printed.

init

(multiple options) The initialization method to use for the variables declared in the parameters block of the Stan program. One of the following:

A real number x > 0. This initializes all parameters randomly between [-x, x] on the unconstrained parameter space.
The number 0. This initializes all parameters to 0 on the unconstrained parameter space.
A character vector of paths to JSON or Rdump files containing initial values for all or some parameters. For MCMC and Pathfinder, if only a single file is provided it will be reused for all chains and paths. See write_stan_json() to write R objects to JSON files compatible with CmdStan.
A list of lists containing initial values for all or some parameters. For MCMC the list should contain a sublist for each chain, and for Pathfinder it should contain a sublist for each path. For other model fitting methods there should be just one sublist. The sublists should have named elements corresponding to the parameters for which you are specifying initial values. See Examples. A tuple parameter is given as an unnamed list of its elements and a complex parameter as an R complex value, see write_stan_json().
A function that returns a single list with names corresponding to the parameters for which you are specifying initial values. The function can take no arguments or a single argument chain_id. For MCMC and Pathfinder, the function is called once for each chain or path. If the function has the chain_id argument, it receives the chain or path number, starting at 1. See Examples.
A CmdStanMCMC, CmdStanMLE, CmdStanVB, CmdStanPathfinder, or CmdStanLaplace fit object. If the fit object's parameters are only a subset of the model parameters then the other parameters will be drawn by Stan's default initialization. The fit object must have at least some parameters that are the same name and dimensions as the current Stan model. For the sample and pathfinder methods, which need one initialization per chain or path, the inits are drawn from the fit object without replacement, so it must contain at least as many draws as the number of chains/paths. For CmdStanVB, CmdStanLaplace, and CmdStanPathfinder fit objects the draws must additionally be distinct. A CmdStanMLE fit object is the exception: its single draw (the mode) is used to initialize every chain or path. When a CmdStanPathfinder fit object is used as the init, if CmdStan actually performed PSIS resampling (which requires num_paths > 1, psis_resample = TRUE, and calculate_lp = TRUE), CmdStanR selects from the returned draws using uniform weights to avoid applying importance weights again. If CmdStan did not PSIS-resample the output and calculate_lp = TRUE, CmdStanR selects draws using Pareto-smoothed importance weights. This includes single-path fits with psis_resample = TRUE, because CmdStan does not PSIS-resample single-path output. If calculate_lp = FALSE, uniform weights are used because importance weights cannot be calculated. PSIS resampling is used to select the draws for CmdStanVB, and CmdStanLaplace fit objects.
A type inheriting from posterior::draws. If the draws object has fewer draws than the number of requested chains/paths, the draws are reused in their existing order until each chain/path has an initialization. If there are more draws than requested chains/paths, draws are selected uniformly without replacement. If the draws object's parameters are only a subset of the model parameters then the other parameters will be drawn by Stan's default initialization. The draws object must have at least some parameters that are the same name and dimensions as the current Stan model.

output_dir

(string) A path to a directory where CmdStan should write its output CSV files. For MCMC there will be one file per chain; for other methods there will be a single file. For interactive use this can typically be left at NULL (temporary directory) since CmdStanR makes the CmdStan output (posterior draws and diagnostics) available in R via methods of the fitted model objects. This can be set for an entire R session using options(cmdstanr_output_dir). The behavior of output_dir is as follows:

If NULL (the default), then the CSV files are written to a temporary directory and only saved permanently if the user calls one of the $save_* methods of the fitted model object (e.g., $save_output_files()). These temporary files are removed when the fitted model object is garbage collected (manually or automatically).
If a path, then the files are created in output_dir with names corresponding to the defaults used by $save_output_files().

output_basename

(string) A string to use as a prefix for the names of the output CSV files of CmdStan. If NULL (the default), the basename of the output CSV files is composed of the model name, timestamp, and a six-character random hexadecimal suffix.

sig_figs

(positive integer) The number of significant figures (up to a maximum of 18) to use when storing the output values. If NULL (the default), the default from the installed CmdStan version is used. Use $cmdstan_defaults() to check that default. Increasing this value will result in larger output CSV files and thus an increased usage of disk space.

threads

(positive integer) If the model was compiled with threading support, the number of threads to use in parallelized sections (e.g., for multi-path pathfinder as well as reduce_sum).

opencl_ids

(integer vector of length 2) The platform and device IDs of the OpenCL device to use for fitting. The model must be compiled with cpp_options = list(stan_opencl = TRUE), otherwise setting this argument is an error.

num_threads

Deprecated and will be removed in a future release. Use threads instead.

init_alpha

(positive real) The initial step size parameter.

tol_obj

(positive real) Convergence tolerance on changes in objective function value.

tol_rel_obj

(positive real) Convergence tolerance on relative changes in objective function value.

tol_grad

(positive real) Convergence tolerance on the norm of the gradient.

tol_rel_grad

(positive real) Convergence tolerance on the relative norm of the gradient.

tol_param

(positive real) Convergence tolerance on changes in parameter value.

history_size

(positive integer) The size of the history used when approximating the Hessian.

single_path_draws

(positive integer) Number of draws a single pathfinder should return. The number of draws PSIS sampling samples from will be equal to single_path_draws * num_paths.

draws

(positive integer) Number of draws to return after performing Pareto smoothed importance sampling (PSIS). This should be smaller than single_path_draws * num_paths.

num_paths

(positive integer) Number of single pathfinders to run. The default is 4. The paths are run sequentially unless the model was compiled with cpp_options = list(stan_threads = TRUE) and threads is set, so running multiple paths in parallel requires both.

max_lbfgs_iters

(positive integer) The maximum number of iterations for LBFGS.

num_elbo_draws

(positive integer) Number of draws to make when calculating the ELBO of the approximation at each iteration of LBFGS.

save_single_paths

(logical) Whether to save the output from each single-Pathfinder run. For a multi-path run, CmdStan writes one Stan CSV file containing draws and one JSON file containing the L-BFGS and ELBO iterations for each path. For a single-path run, the main output CSV contains the draws and CmdStan writes an additional JSON file. The auxiliary files are written to output_dir, or to a temporary directory if output_dir = NULL. They are not included in the paths returned by the fitted object's $output_files() method. See the CmdStan User's Guide for details.

psis_resample

(logical) Whether to perform Pareto smoothed importance sampling. If TRUE, the number of draws returned will be equal to draws. If FALSE, the number of draws returned will be equal to single_path_draws * num_paths.

calculate_lp

(logical) Whether to calculate the log probability of the draws. If TRUE, the log probability will be calculated and given in the output. If FALSE, the log probability will only be returned for draws used to determine the ELBO in the pathfinder steps. All other draws will have a log probability of NA. A value of FALSE will also turn off Pareto smoothed importance sampling as the lp calculation is needed for PSIS.

show_messages

(logical) When TRUE (the default), prints all output during the execution process, such as iteration numbers and elapsed times. If the output is silenced then the $output() method of the resulting fit object can be used to display the silenced messages.

show_exceptions

(logical) When TRUE (the default), prints all informational messages, for example rejection of the current proposal. Disable if you wish to silence these messages, but this is not usually recommended unless you are very confident that the model is correct up to numerical error. If the messages are silenced then the $output() method of the resulting fit object can be used to display the silenced messages.

save_cmdstan_config

(logical) When TRUE, call CmdStan with argument "output save_config=1" to save a JSON file which contains the argument tree and extra information (equivalent to the output CSV file header). The default is FALSE but can be set to TRUE for an entire R session by options(cmdstanr_save_config = TRUE).

compress

(string) Compression to apply to the output CSV files after CmdStan finishes (including latent dynamics files, if saved): "none" (the default), "gzip", or "bzip2". The fit reads compressed files by decompressing them to a temporary copy first, which makes each read slower in exchange for using less disk space. The cmdstanr_compress option sets the default for every fitting method.

Value

A CmdStanPathfinder object.

References

Zhang, L., Carpenter, B., Gelman, A., and Vehtari, A. (2022). Pathfinder: parallel quasi-Newton variational inference. Journal of Machine Learning Research, 23(306), 1-49.
Stan Development Team. Stan Reference Manual (Algorithms section, Pathfinder): https://mc-stan.org/docs/reference-manual/
Stan Development Team. Stan documentation: https://mc-stan.org/users/documentation/
Stan Development Team. CmdStan User's Guide: https://mc-stan.org/docs/cmdstan-guide/

Examples

# \dontrun{
file <- file.path(cmdstan_path(), "examples/bernoulli/bernoulli.stan")
mod <- cmdstan_model(file)
stan_data <- list(N = 10, y = c(0,1,0,0,0,0,0,0,0,1))

# Four single-path Pathfinders by default, combined by importance
# resampling
fit <- mod$pathfinder(data = stan_data, seed = 123)
#> Path [1] :Initial log joint density = -18.273334
#> Path [1] : Iter      log prob        ||dx||      ||grad||     alpha      alpha0      # evals       ELBO    Best ELBO        Notes
#>               5      -6.748e+00      7.082e-04   1.432e-05    1.000e+00  1.000e+00       156 -6.216e+00 -6.145e+00
#> Path [1] :Best Iter: [5] ELBO (-6.145070) evaluations: (156)
#> Path [2] :Initial log joint density = -19.192715
#> Path [2] : Iter      log prob        ||dx||      ||grad||     alpha      alpha0      # evals       ELBO    Best ELBO        Notes
#>               5      -6.748e+00      2.015e-04   2.228e-06    1.000e+00  1.000e+00       156 -6.170e+00 -6.223e+00
#> Path [2] :Best Iter: [2] ELBO (-6.170358) evaluations: (156)
#> Path [3] :Initial log joint density = -6.774820
#> Path [3] : Iter      log prob        ||dx||      ||grad||     alpha      alpha0      # evals       ELBO    Best ELBO        Notes
#>               4      -6.748e+00      1.137e-04   2.596e-07    1.000e+00  1.000e+00       123 -6.243e+00 -6.178e+00
#> Path [3] :Best Iter: [4] ELBO (-6.177909) evaluations: (123)
#> Path [4] :Initial log joint density = -7.949193
#> Path [4] : Iter      log prob        ||dx||      ||grad||     alpha      alpha0      # evals       ELBO    Best ELBO        Notes
#>               5      -6.748e+00      2.145e-04   1.301e-06    1.000e+00  1.000e+00       156 -6.235e+00 -6.197e+00
#> Path [4] :Best Iter: [5] ELBO (-6.197118) evaluations: (156)
#> Finished in  0.1 seconds.
fit$summary()
#> # A tibble: 4 × 7
#>   variable      mean median    sd   mad      q5    q95
#>   <chr>        <dbl>  <dbl> <dbl> <dbl>   <dbl>  <dbl>
#> 1 lp__        -7.26  -6.97  0.720 0.304 -8.77   -6.75
#> 2 lp_approx__ -1.07  -0.724 0.871 0.306 -2.82   -0.451
#> 3 path__       2.46   2     1.12  1.48   1       4
#> 4 theta        0.258  0.241 0.121 0.119  0.0840  0.475

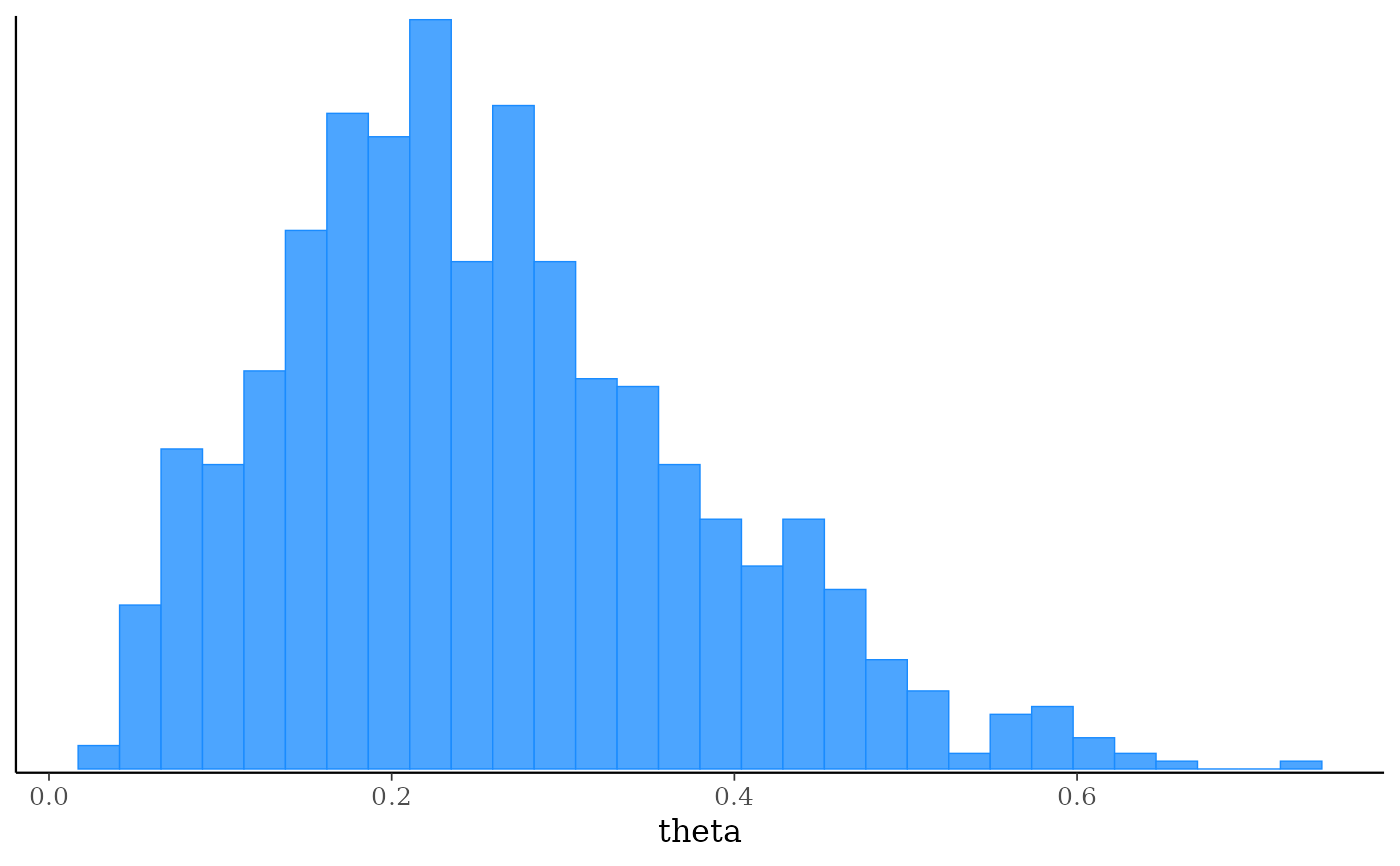

bayesplot::mcmc_hist(fit$draws("theta"))
#> `stat_bin()` using `bins = 30`. Pick better value `binwidth`.


# More paths, fewer draws per path, a longer L-BFGS history and fewer
# L-BFGS iterations. show_messages = FALSE here and below hides
# CmdStan's output. That's to keep these examples short, not a
# recommendation.
fit <- mod$pathfinder(
  data = stan_data,
  seed = 123,
  num_paths = 10,
  single_path_draws = 100,
  history_size = 50,
  max_lbfgs_iters = 100,
  show_messages = FALSE
)

# Keep every path's draws instead of resampling them
fit <- mod$pathfinder(
  data = stan_data,
  seed = 123,
  psis_resample = FALSE,
  show_messages = FALSE
)

# Pathfinder draws as initial values for MCMC
fit_mcmc <- mod$sample(
  data = stan_data,
  seed = 123,
  init = fit,
  show_messages = FALSE
)
# }
# \dontrun{
# The rest of these examples work the same way for every fitting method.

# Draws as a posterior draws object
fit$draws()
#> # A draws_matrix: 4000 iterations, 1 chains, and 4 variables
#>     variable
#> draw lp__ lp_approx__ path__ theta
#>   1  -6.9       -0.69      1 0.184
#>   2  -6.8       -0.53      1 0.273
#>   3  -7.0       -0.76      1 0.347
#>   4  -8.5       -2.83      1 0.074
#>   5  -7.5       -1.42      1 0.120
#>   6  -7.1       -0.91      1 0.155
#>   7  -6.8       -0.61      1 0.199
#>   8  -6.9       -0.62      1 0.312
#>   9  -6.9       -0.62      1 0.196
#>   10 -7.4       -1.30      1 0.126
#> # ... with 3990 more draws
fit$draws("theta", format = "df")
#> # A draws_df: 4000 iterations, 1 chains, and 1 variables
#>    theta
#> 1  0.184
#> 2  0.273
#> 3  0.347
#> 4  0.074
#> 5  0.120
#> 6  0.155
#> 7  0.199
#> 8  0.312
#> 9  0.196
#> 10 0.126
#> # ... with 3990 more draws
#> # ... hidden reserved variables {'.chain', '.iteration', '.draw'}

# Data as a path to a JSON or R dump file instead of a list
data_file <- file.path(
  cmdstan_path(),
  "examples/bernoulli/bernoulli.data.json"
)
fit <- mod$pathfinder(data = data_file, seed = 123, show_messages = FALSE)

# Initial values from a function
fit <- mod$pathfinder(
  data = stan_data,
  seed = 123,
  init = function() list(theta = runif(1)),
  show_messages = FALSE
)
fit$init()
#> [[1]]
#> [[1]]$theta
#> [1] 0.02871257
#>
#>
#> [[2]]
#> [[2]]$theta
#> [1] 0.7859512
#>
#>
#> [[3]]
#> [[3]]$theta
#> [1] 0.8253079
#>
#>
#> [[4]]
#> [[4]]$theta
#> [1] 0.9652404
#>
#>

# Initial values from a previous fit (can be a fit from a different method)
fit2 <- mod$pathfinder(
  data = stan_data,
  seed = 123,
  init = fit,
  show_messages = FALSE
)

# Initial values from a posterior::draws object
inits <- fit$draws()
fit <- mod$pathfinder(
  data = stan_data,
  seed = 123,
  init = inits,
  show_messages = FALSE
)

# Suppress output from CmdStan while it runs
fit <- mod$pathfinder(
  data = stan_data,
  seed = 123,
  show_messages = FALSE,
  show_exceptions = FALSE
)

# The CSV files CmdStan wrote, in a temporary directory by default. Move
# them to keep them past the R session. Replace tempdir below with a
# directory you'll keep.
fit$output_files()
#> [1] "/tmp/RtmpwHIm89/bernoulli-202610151532-01-6a8f1f.csv"

my_dir <- tempdir()
fit$save_output_files(dir = my_dir, basename = "bernoulli")
#> Moved 1 files and set internal paths to new locations:
#> - /tmp/RtmpwHIm89/bernoulli-202610151532-01-462556.csv

# Or use output_dir to have CmdStan write them there in the first place,
# here gzip-compressed to save disk space
fit <- mod$pathfinder(
  data = stan_data,
  seed = 123,
  output_dir = my_dir,
  output_basename = "bernoulli",
  compress = "gzip",
  show_messages = FALSE
)
fit$output_files()
#> [1] "/tmp/RtmpwHIm89/bernoulli-01.csv.gz"
# }
